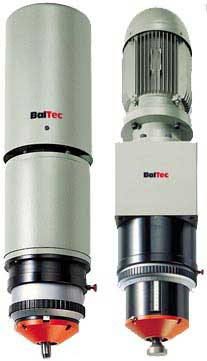

BalTec Riveting Heads:

riveting_heads

Modular in Assembly - Flexible in Use:

These modular power heads are designed to mount in any position, using radial forming. Their compact design saves valuable machine space and their automatic lubrication system eliminates periodic maintenance.

Specs:

BalTec              : rne181    rne231
Shank diameter      : 0.2-6mm   0.5-8.5mm
Max. Downward force : 6,4 KN    12,8 KN @ 6 bar
Stroke range        : 5-30 mm   5-40 mm
Motor               : 0.25 kW   0.38 kW @ 1700 rpm
Operating voltages  : 120V
                      3 x 220V  3 x 220V
                      3 x 440V  3 x 440V
Mass                : 32 Kg     45 Kg

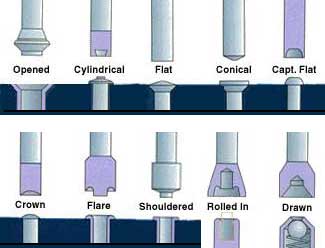

Forming Tools

riveting_heads
